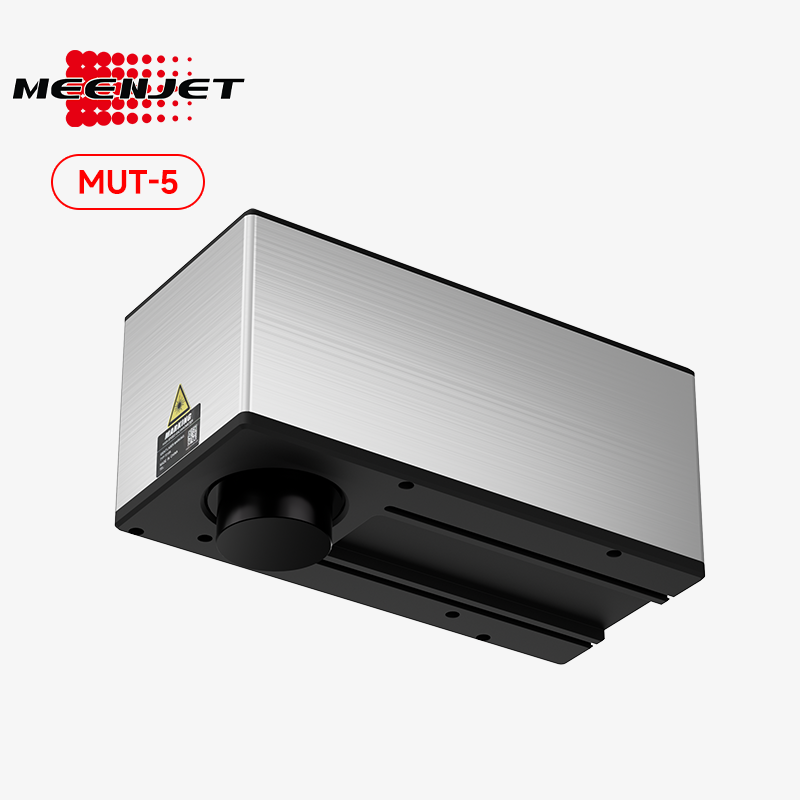

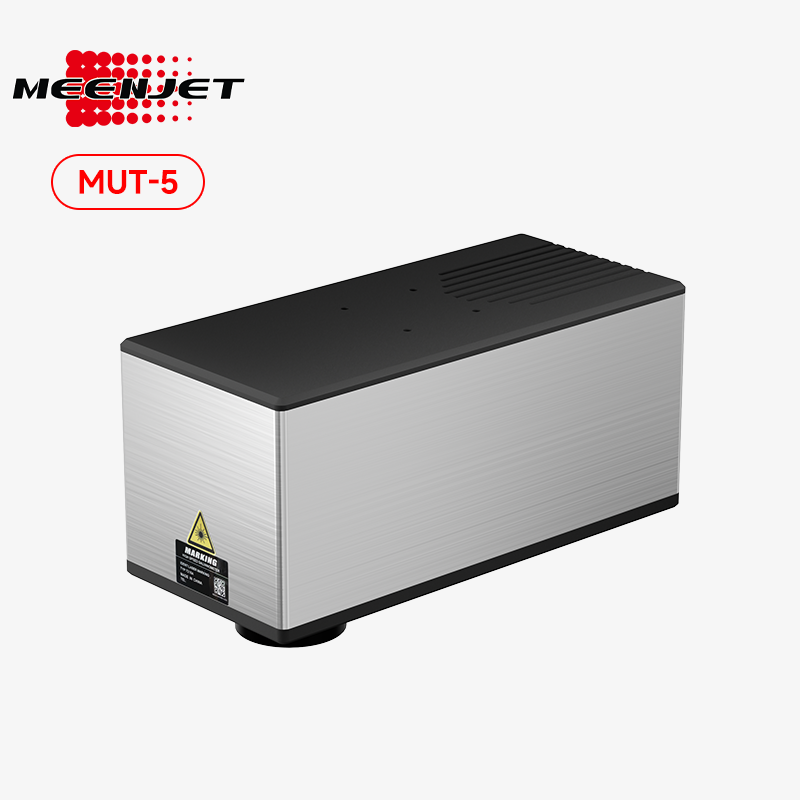

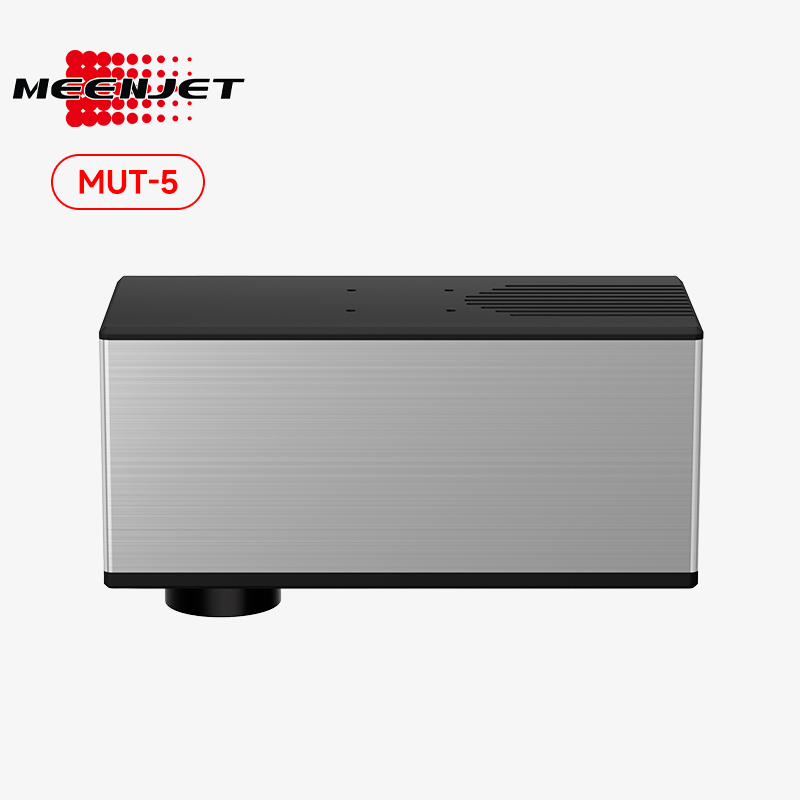

Meenjet MUT-5 Flying UV Laser Marker
TTO Replacement: Compact head (311mm, 8.95kg) fits TTO brackets directly.
Zero Consumables: 100% ribbon-free with zero changeover downtime.
Cold Processing: 355nm UV marks thin films without burning or melting.
Dual-Light Setup: Red-light focus and Blue-light box preview for quick alignment.
Linux Control: 10.2-inch touch display engineered for 24/7 inline stability.
Overview

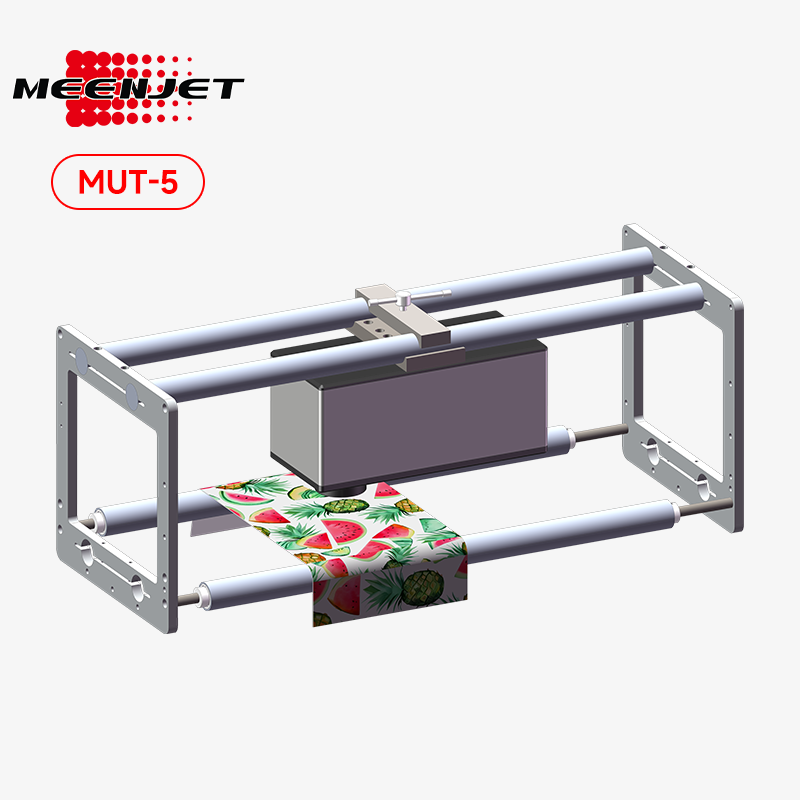

The Meenjet MUT-5 is an industrial-grade 5W inline flying UV laser marking machine built for non-stop, high-contrast coding on flexible packaging and heat-sensitive materials. Engineered with an ultra-compact, lightweight laser head (311×133×133" mm" , 8.95" kg" ), the MUT-5 easily mounts onto existing TTO (Thermal Transfer Overprinter) brackets or standard conveyor structures. Utilizing 355nm "cold laser" technology, it eliminates thermal damage while delivering clear, rub-proof, permanent marking on thin films without compromising package seal integrity.
Material Compatibility
The MUT-5 UV laser marker excels across a wide variety of heat-sensitive and non-metallic substrates:
Flexible Packaging & Films: Transparent/colored PE, PET, PP, OPP, and aluminum-plastic composite bags/films.
Plastics & Polymers: Flexible PCB, HDPE, ABS, PVC, and other engineered plastics.
Specialty Substrates: Glass, ceramics, aluminum-plastic panels, and coated metal surfaces.
Marking Capabilities
Dynamic Production Data: Real-time timestamps, expiration dates, lot/batch numbers, shift codes, and sequential counters.
High-Density Traceability: Crisp 1D/2D barcodes (CODE39, CODE128, CODE126, QR Code, DataMatrix).
Branding & Graphics: High-contrast corporate LOGOs, symbols, and custom vector graphics
| Model | MUT-5 |
| Laser | UV laser source |
| Watt | ≥ 5W |
| Wavelength | 355nm |
| Marking Speed | ≤12,000 mm/s |
| Positioning System | Red light focusing & Blue light preview frame |
| Cooling System | Water-cooling |
| Power Supply | 110V/220V, 50/60HZ 1200W |
| Environment | External temperature: 0 ~ 45 ℃; Humidity ≤ 95 %; Non-condensing |
| Operation System | Linux |
| Main Control | 10.2 inch Touch screen control |
| Marking Size | 50 x 50 mm |
| Language | Arabic, German, English, Spanish, Russian, Chinese Simplified, Chinese Traditional etc. (Support customization) |
| Support Contents | Text, Date, Logo, Graph, Barcode, QR Code, DM Code etc. |
| Barcode / 2D Code | CODE39, CODE128, CODE126, QR Code, DataMatrix (DM) |
| Marking Materials | Transparent packaging bags, Aluminum-plastic panels, Flexible PCB, PE, PET, PP, Glass, Ceramics, Metal coatings etc. |
| Industrial Application | Flexible packaging, Pharmaceutical packaging, Food & Beverage packaging, Daily chemical, Electronics and other industries. |
| Machine Weight | Net weight: 8.95 kg |
| Overall Dimension | 311 x 133 x 133 mm |
Meenjet MUT-5 Flying UV Laser Marker Specifications.pdf
Printing Performance & Effects
