L4MAX Portable Laser Marker

Meenjet L4MAX Industrial Portable Fiber Laser Marker

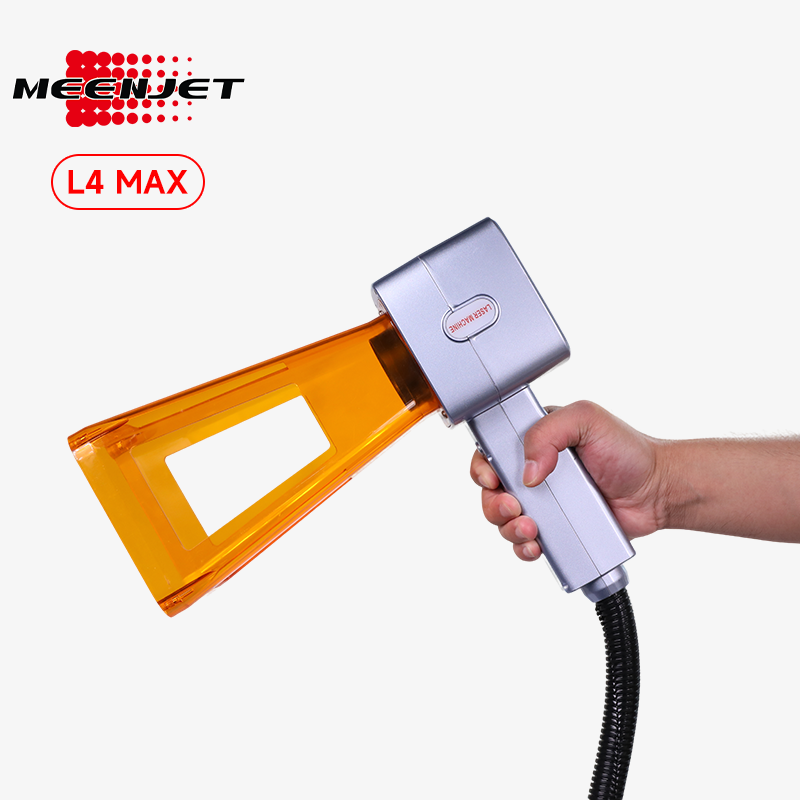

· 1.75 m cable, lightweight head.

· Optional 11,600 mAh battery for 24/7 runtime.

· Built-in lens shield and armor.

· ±3 μm repeatability.

· 12,000 mm/s marking with red-light alignment.

Overview

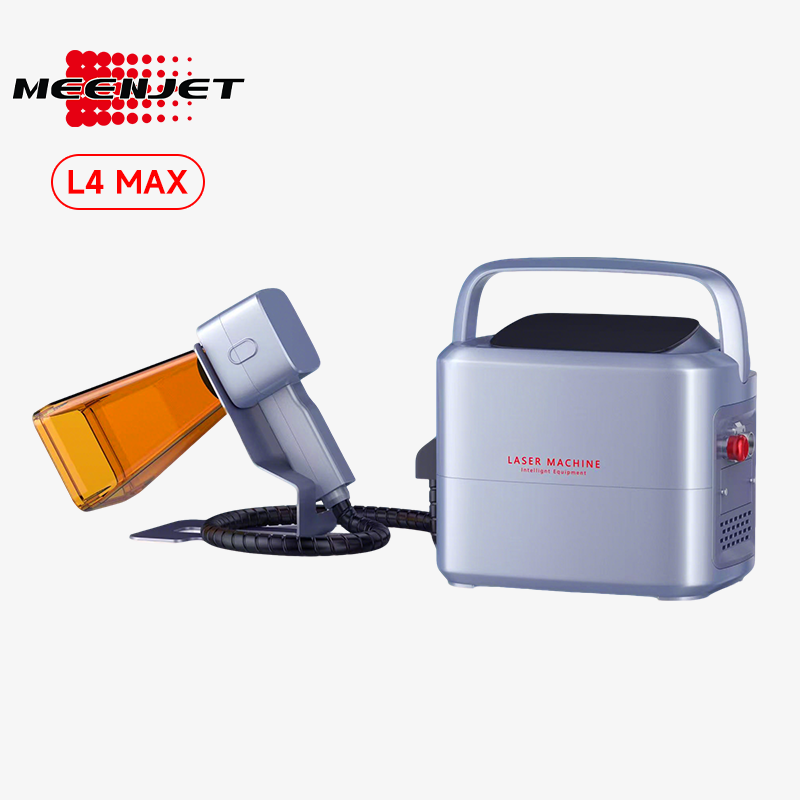

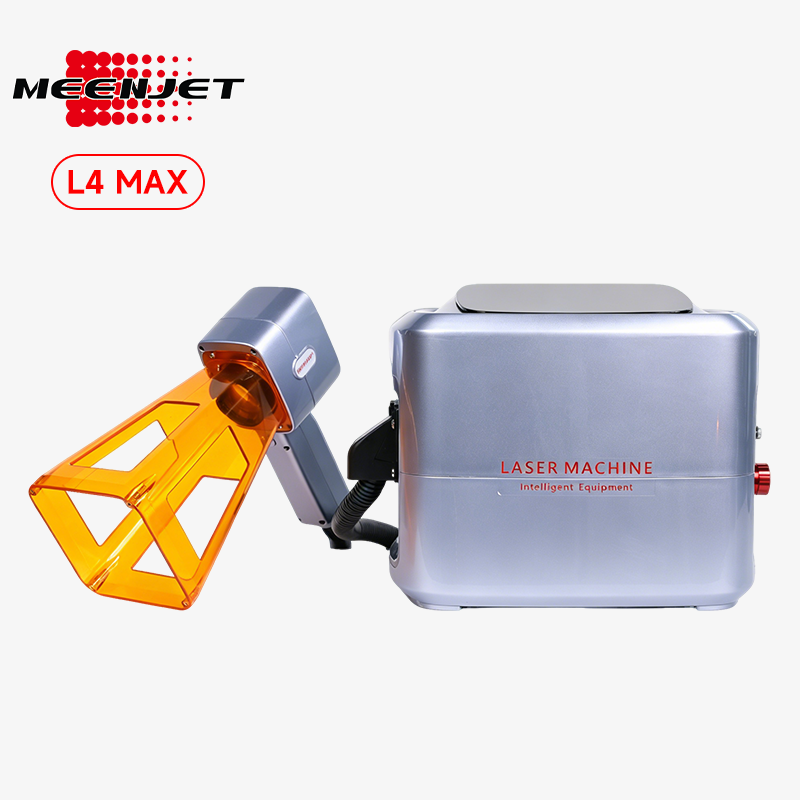

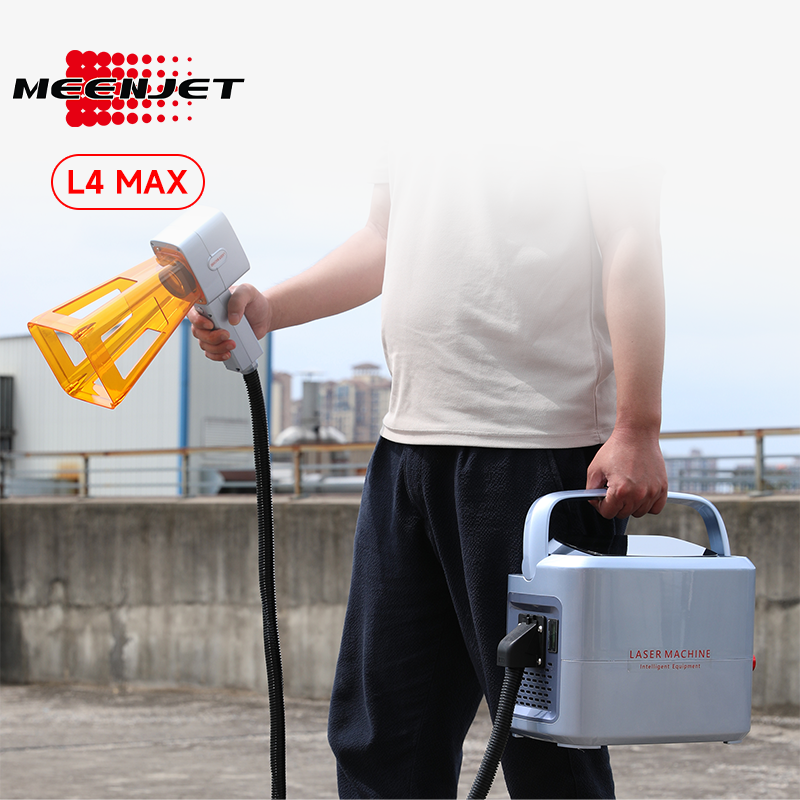

The Meenjet L4MAX is an industrial-grade portable fiber laser marker engineered for high-precision coding. It features a long-life fiber laser source, an ergonomic lightweight handheld head with a 1.75 m cable, and an optional 11,600 mAh detachable backup battery for hot-swap continuous operation. It delivers stable, clear, permanent marking on metals, engineering plastics and stone in demanding environments.

Material Compatibility
The L4MAX laser marking machine is compatible with a wide array of industrial materials:
- Metals: Stainless steel, carbon steel, anodized aluminum, copper and alloys.
- Plastics: HDPE, ABS, PVC, PES and other engineering plastics.
- Other Substrates: Stone, coated materials and non-metal surfaces.
Marking Capabilities
Dynamic Data: Real-time dates, serial numbers, shift codes and counters.
Traceability: High-density 1D/2D barcodes (QR Code, Code 128, etc.).
Branding: Crisp corporate logos and customized vector graphics (DXF, PLT, etc.).

Warranty
· 1-year warranty.
· Lifetime technical support.
· Please contact us for any application questions.

Printing Performance & Effects

Laser Source	Fiber Laser
Wavelength	1064 nm
Laser Power	≥10W / 20W / 30W / 50W
Laser Lifespan	≥100,000 hours
User Interface (UI)	7-inch Touchscreen
Operating System	4701 System

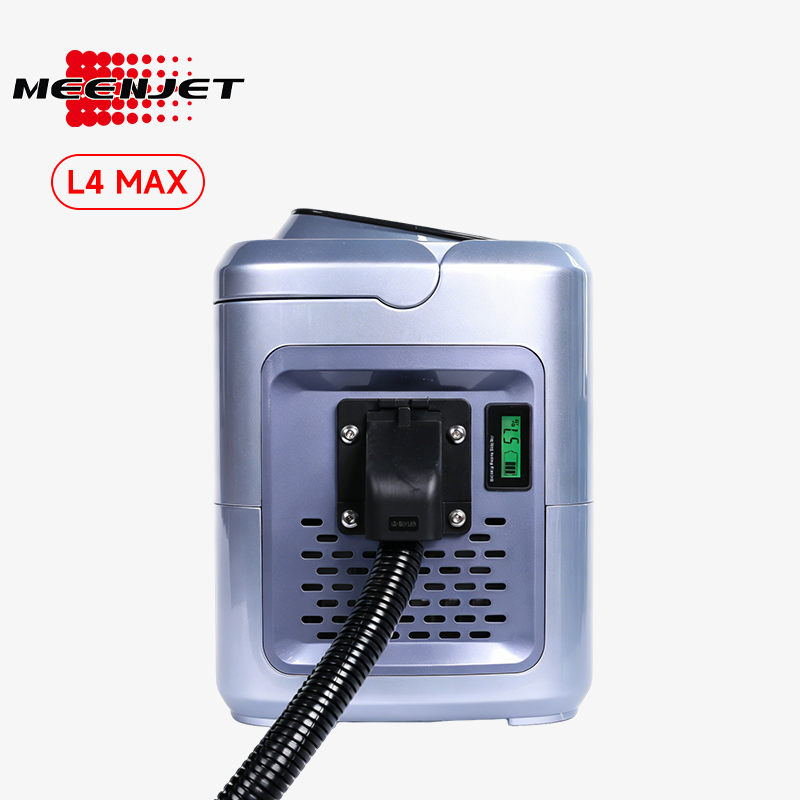

Power Supply	Standard: External 220V/50Hz Optional: Built-in 11,600 mAh Battery
Marking Area	110 mm x 110 mm (Customizable)
Repeat Positioning Accuracy	0.003 mm
Marking Speed	≤12,000 mm/s
Positioning Method	Red Light Indicator
Supported File Formats	BMP, DXF, HPGL, JPEG, PLT
Cooling System	Ambient Air Cooling
Working Environment	Ambient Temperature: 0°C – 45°C; Humidity: ≤95% (Non-condensing); Vibration-free
Marking Content	CODE39, CODE128, CODE126, QR Code, Matrix Code (Optional)
Dimensions	Controller: 300 x 190 x 260 mm Laser Head: 260 x 120 x 290 mm Packaging: 540 x 280 x 340 mm
Applicable Materials	Stainless steel, carbon steel, anodized aluminum, aluminum alloys, aluminum, copper-iron alloys, copper, iron, cemented carbide, HDPE, ABS, PVC, PES, stone.
