PRODUCTS

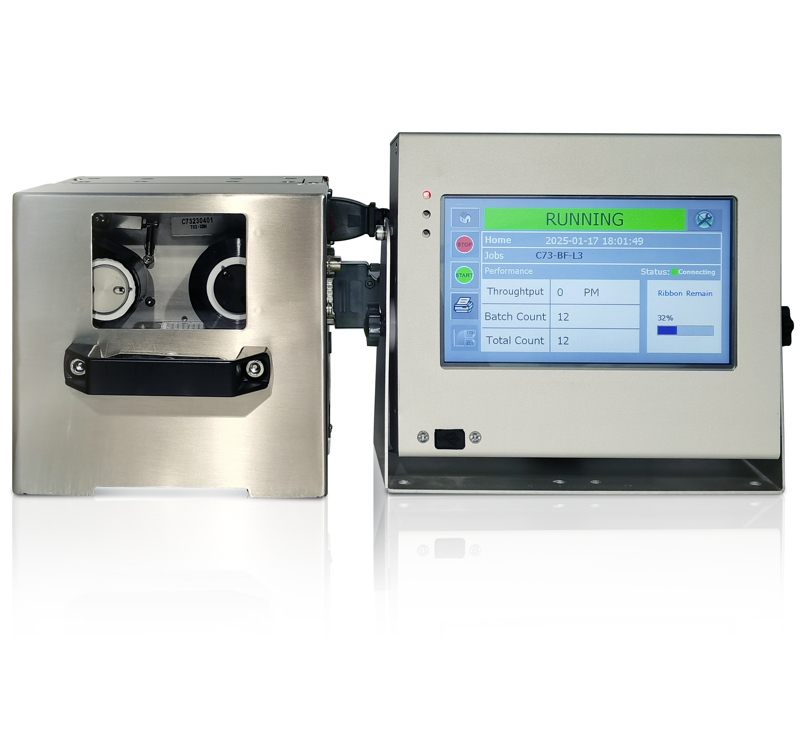

Compact & Smart
Zero Air Consumption: All-electric, no air supply needed.
Ultra-Compact: 5kg modular build for easy integration.
Smart Control: Wireless editing via App, Bluetooth, or USB.
High Productivity: Blazing fast 220 packs/min speed.
Proven Reliability: Fail-safe performance on any substrate.
Material Compatibility
The MOC series TTO printer is compatible with a broad selection of ribbons designed for diverse substrates:
Flexible Films: PET, PE, CPP, and other laminated materials used in pouch packaging.
Specialty Applications: Supports ribbons requiring high-temperature resistance and anti-migration properties.
Labels: Ideal for high-resolution batch coding on synthetic and paper-based labels.
Common Industries & Applications
As a versatile Thermal Transfer Overprinter, the MOC series is widely used for:
Food & Beverage: Printing expiry dates, batch numbers, and QR codes on snack bags and flexible pouches.
Pharmaceuticals: Precise tracking and traceability coding on medical packaging.
Daily Chemicals: High-quality logo and text printing for cosmetics and personal care products.
| Type | MOC24 | MOC32 |
| Resolution | 200DPI | 300DPI |
| Inter. Print Area | 24 x 55mm | 32 x 55mm |
| Cont. Print Area | 24 x 100mm | 32 x 150mm |
| Ribbon Length | 400M | 600m |
| Standard Ribbon width | 25mm | 33mm |
| Print Mode | Intermittent and Continuous Integration | |
| Left and right | Optional | |
| Cont. Print Speed | 50~600mm/s | |
| Max prints | 220packs/min | |
| Print contents | Date, post date, time, counter, shift, Bar code, QR code, LOGO, text | |
| Input | Print signal, Encoder signal (NPN, PNP) | |
| Output | Fault relay output | |
| Dimensions (mm) | 164 x 158 x 150 | |
| Printer weight | 5kg | 5.5kg |
| Power supply | 110/220V AC, 50/60 Hz, 120W | |
| Operation Environmental | Temperature: 5 - 40 ℃ Humidity: 10% - 90%, non-condensing | |
| Operating interface | Includes mobile and Windows editing software with Bluetooth or USB transferto the printer. Optional 7-inch touchscreen available. | |
| Air Supply | No need air Supply | |
Meenjet Thermal Transfer Overprinter MOC Series Specification.pdf
Printing Performance & Effects
The MOC series ensures precise, high-resolution visuals through cutting-edge synchronous printing:
Dynamic Content: Real-time date, post date, time, counter, and shift info.
Traceability: High-density Bar codes and QR codes.
Branding: Crisp company LOGOs and custom text.
