Meenjet MX2890 Continuous Inkjet Printer (CIJ)
· 40μm ruby nozzle with auto-sealing for clog-free printing.
· Supports opaque white and yellow pigment inks.
· Prints up to 5 lines simultaneously at 433 m/min.
· 10.1-inch HD touchscreen with intuitive OS.
· IP54 stainless steel chassis for harsh environments.
· 1-year warranty and lifetime technical support.

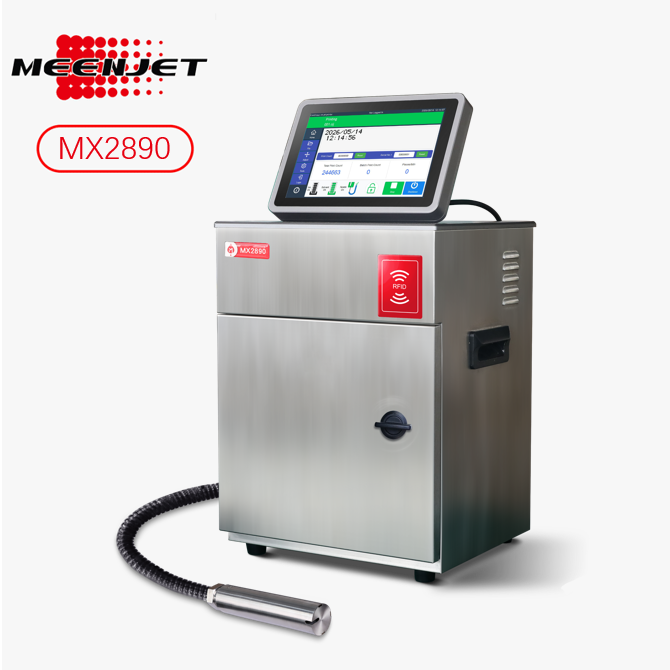

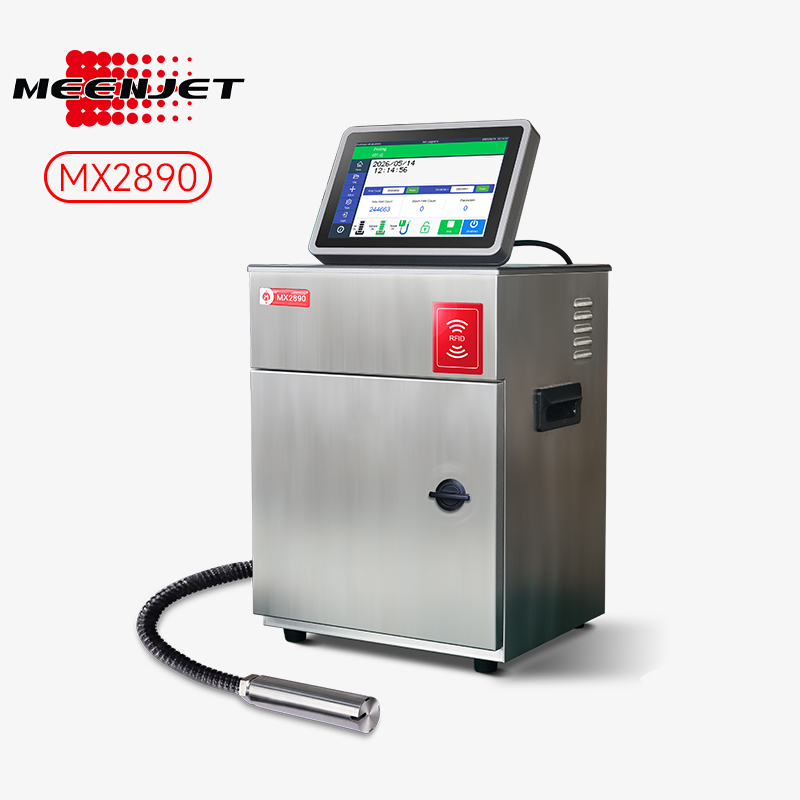

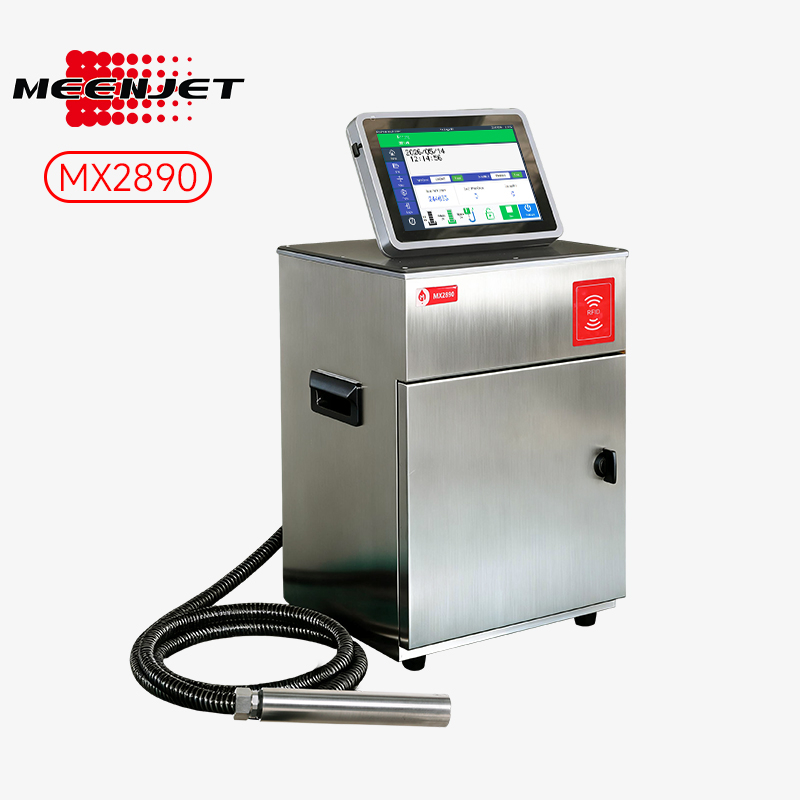

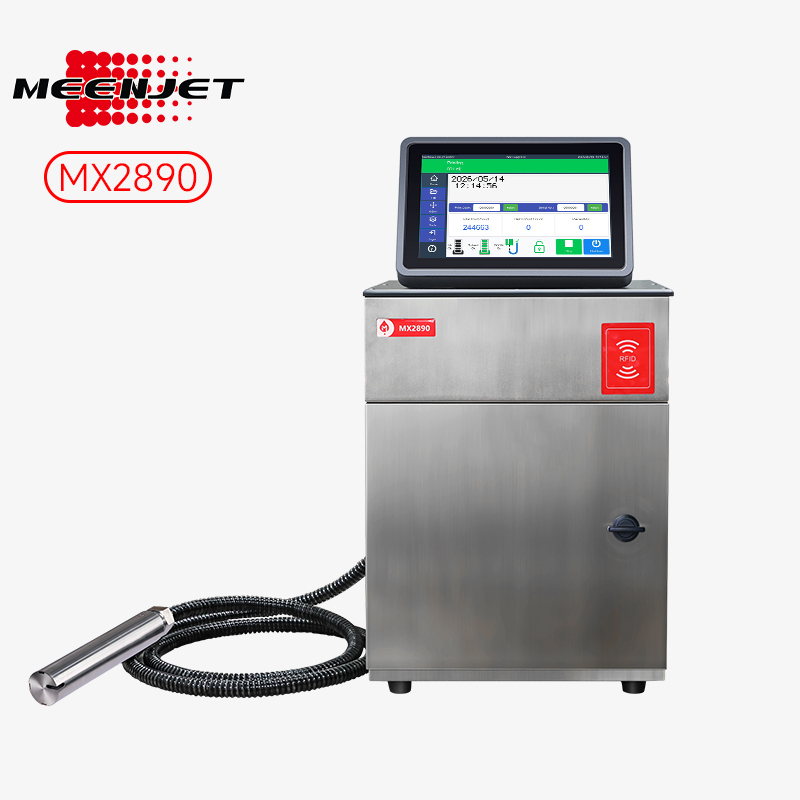

Meenjet MX2890 Continuous Inkjet Printer (CIJ)
Product Overview
The Meenjet MX2890 is a high-performance CIJ system engineered for non-contact, high-speed coding on diverse substrates. It provides a robust solution for permanent traceability and high-contrast branding in demanding industrial environments.
Key Industries: Electronics, Automotive, Wire & Cable, Pharmaceutical, and Food & Beverage.
Applications: Micro-coding on PCBs, high-contrast marking on dark cables, and high-speed batch coding on cans and packaging.
Core Advantages
Ultra-Precision Micro-Printing

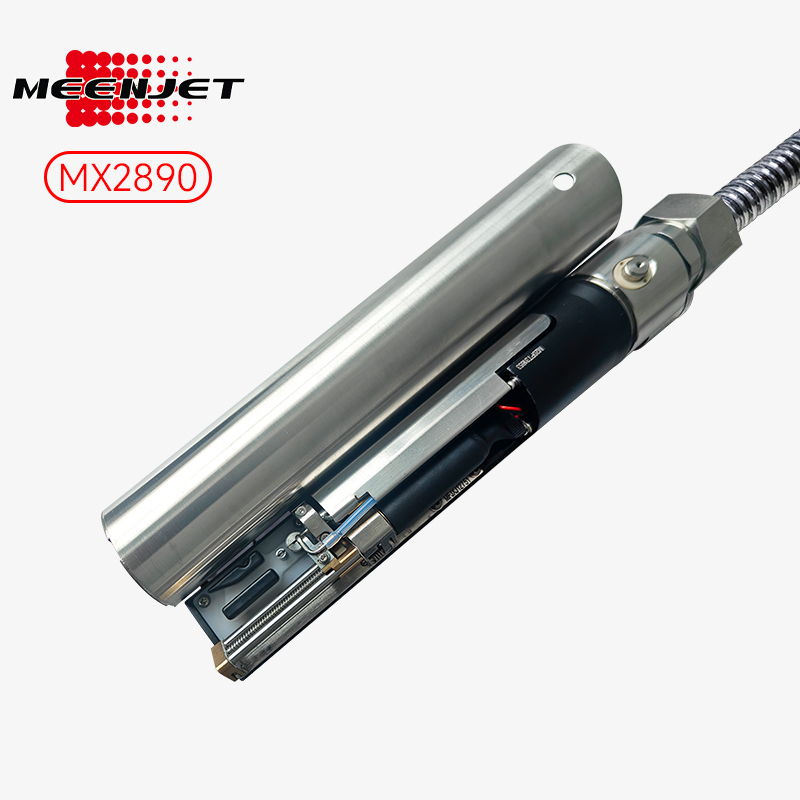

The MX2890 delivers high-density, crystal-clear marking on extremely small surfaces. Specialized 40μm / 50μm / 65μm ruby nozzles enable sharp micro-text as small as 0.6mm, ensuring 100% readability for complex codes on electronic components and small parts.
High-Contrast Opaque Ink Support
The MX2890 solves the challenge of marking on dark or difficult substrates. It is fully compatible with opaque pigment inks (white/yellow). Combined with high-adhesion formulations, it produces vibrant, abrasion-resistant marks on dark PVC, automotive parts and plastic caps.
Industrial Reliability & Low Maintenance

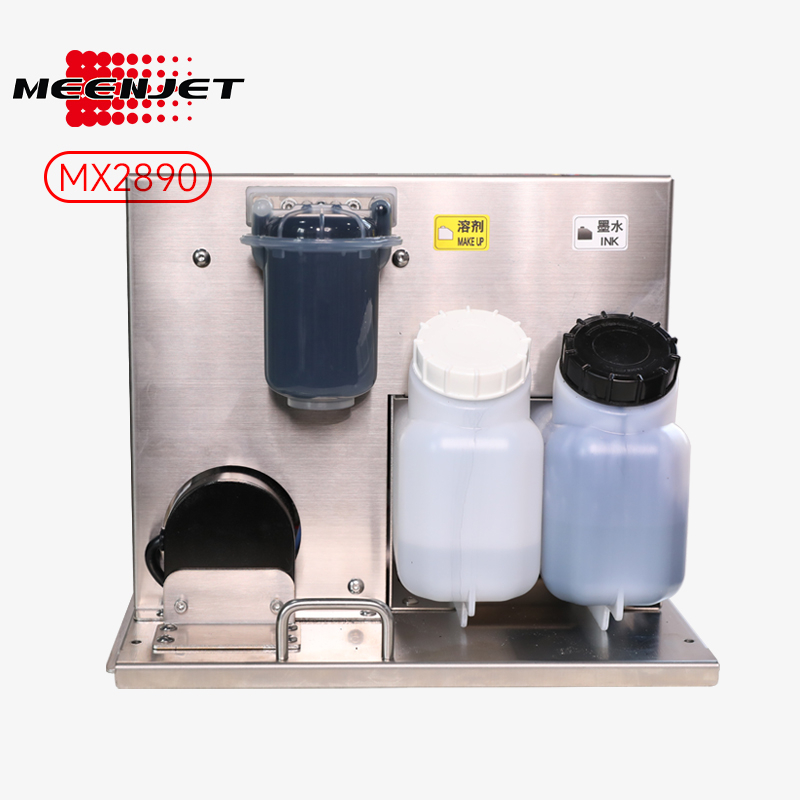

Engineered for 24/7 uptime with minimal operator intervention. Auto-sealing technology and automated self-cleaning eliminate nozzle clogs. The IP54 stainless steel chassis and modular design ensure stable operation and consumable swaps in seconds.
High-Speed Production Efficiency
The MX2890 matches the throughput of the world's fastest production lines. It supports up to 5 lines of content with speeds reaching 433 m/min, achieving high-volume output without sacrificing legibility or placement accuracy.
Warranty
· 1-year warranty.
· Lifetime technical support.
· Please contact us for any application questions.
| Printing Lines | 1–5 lines (based on 5×5 dot matrix) |
| Nozzle Size | 40μm / 50μm / 65μm |
| Ink Colors | Standard: Black, Blue, Red, etc. Opaque (Pigment): White, Yellow |
| Font Matrix | 5×4, 5×5, 7×5, 9×7, 11×9, 12×10, 16×10, 16×12, 24×18, 32×24 |
| Print Height | 0.6~5mm (40μm), 1~8mm (50μm), 2~10mm (65μm) |
| Throw Distance | 2~8mm (40μm), 2~10mm (50μm), 2~20mm (65μm) |
| Printing Speed | 433 m/min (tested with 65μm nozzle, single-line 5×5 font at 10 characters per inch) |
| Language | English, Chinese, Arabic, French, German, Greek, Italian, Korean, Persian, Portuguese, Russian, Spanish, Thai, Turkish, etc. (Customizable languages supported) |
| Interface | Photocell (Photoelectric Sensor), Shaft Encoder, USB |
| Storage | 8GB (>10,000 print files) |
| Barcodes | Code39, EAN8, EAN13, Code 128, EAN128, Data Matrix, QR Code, UPC-A |
| 2D Codes | Data Matrix (DM): 10, 12, 14, 16, 18, 20, 22, 24, 26, 32 / QR Code: QR21, QR25, QR29 |
| Protection Level | IP54 |
| Umbilical Cable Length | 2.5m (Standard) |
| Operation Interface | 10.1" HD touchscreen |
| Net Weight | Approx. 23kg |
| Consumable Capacity | Ink: 400ml / Makeup: 500ml |
| Voltage & Power | 110–240V AC, 50/60Hz, 150W |
| Extended Parts | Dual photocell interfaces, Warning light, Shaft encoder, Working station |
