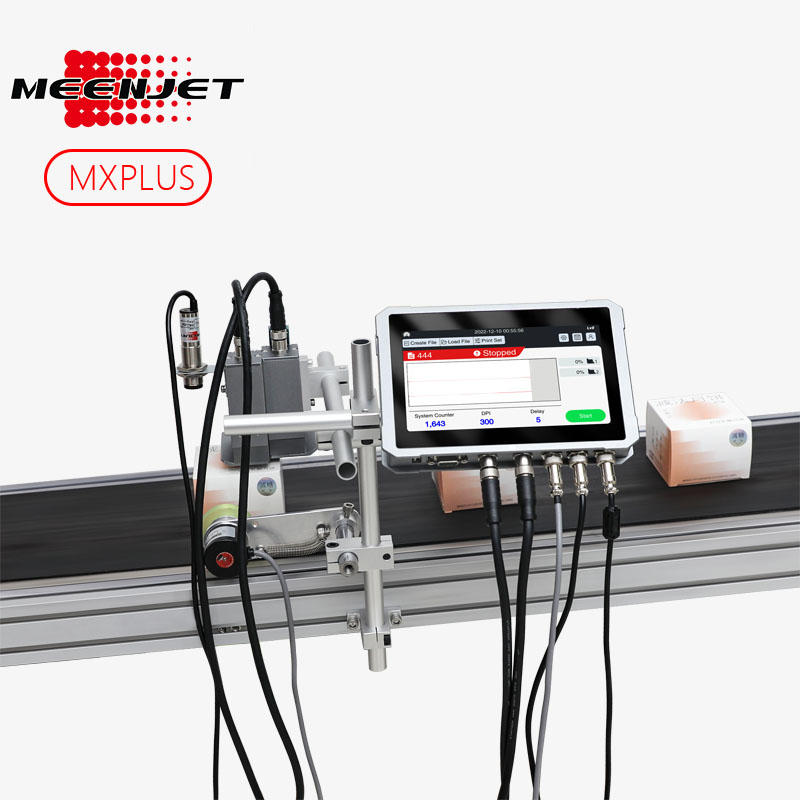

Meenjet MXPlus Online Thermal Inkjet Printer
An intelligent online TIJ coding machine for small and medium businesses.
· 1-2 print heads, print height up to 25.4 mm.
· Up to 120 m/min print speed.
· Up to 1,200 DPI resolution.
· 7-inch touch screen with intuitive interface.
· Photocell sensor for automatic printing.
· Prints dates, batch codes, QR codes and variable data.
The MXPlus inkjet coding machine can be automatically triggered by a photocell sensor.
New double spray and alternate spray printing modes improve printing quality and extend cartridge life.
Added automatic real-time update of reciprocating print time parameters.
Added signal masking function for accurate code assignment and to avoid false triggers.
Added log management to check device running status at any time.
Exceptional protection function ensures data security in case of unexpected power failure.
Efficient
· Print speed: up to 120 m/min (high-speed mode).
· Resolution: X-axis 50~1,200 DPI, Y-axis 300~600 DPI.
· Supports 1-2 print heads with multi-ink control.
· Anti-interference: antistatic protection up to ±8kV.
· Smart design: intelligent temperature regulation module.
· Traceability: one-item-one-code printing mode.
· User management: 3-level access control.
New Appearance and Large Capacity
· New industrial design with single-side cable outlet.
· Compact and independent print head design. Each print head can operate independently.
· New structure design increases electromagnetic interference (EMI) resistance.
· 8GB RAM supports local storage of multiple files. Edit files and data on MXPlus at any time without connecting a PC.
Warranty
· 1-year warranty.
· Lifetime technical support.
· Please contact us for any application questions.
Packing List
· Controller and print head
· Printer case
· Connecting cable
· Sensor
· Kits to fix printer
· Power supply
· USB stick
· Touch pen
· User manual
· Ink cartridges sold separately
|
|
| |
| Touch Screen Size (inch) | 4.3 | 7 | |
| Max Print Definition (DPI) | 600 | 1200 | |
| Max Print Height (mm) | 12.7 | 25.4 | 50.8 |
| Max Print Speed (m/min) | 70 | 120 | 240 |
| USB Wired/Wireless Code Scanning for Access | Support | ||
| PC Software File Import | - | Support | |
| PC Network Software Interaction | Support | ||
| Network External Variable Data | - | - | Support |
| Serial External Variable Data | Support | ||
| Ink Cost Calculation Module | Optional | Support | |
| Counter Automatically Resets to Initial Value | Support | ||
| Connect Weighing Equipment | Support | ||
| Edit and Copy Function | Support | ||
| Technology | HP TIJ2.5 Thermal Inkjet Technology |
| Resolution (X-axis) | 50~1,200 DPI |
| Resolution (Y-axis) | 300 DPI (single pass), 600 DPI (dual pass) |
| Throw Distance | 2~5 mm |
| Print Height | 1~25.4 mm (1~2 heads) |
| Print Speed | Maximum 120 m/min (high-speed mode) |
| Print Content | Date, Time, Text, Batch Number, Image, Barcode, QR Code, Database |
| Ink Type | Aqueous / Solvent-based / UV ink |
| Ink Color | Black, White, Red, Yellow, Blue, Green, Invisible |
| Languages | Arabic, Chinese, English, French, German, Greek, Italian, Korean, Persian, Portuguese, Russian, Spanish, Thai, Turkish, etc. (Support customization) |
| Communication Protocol | RS232 |
| Interface | USB, DB9 serial port, I/O, Encoder, Photocell sensor |
| Working Condition | Temperature 0~45°C (Optimal: 20~30°C), Humidity 40~60% RH |
| Adapter Parameter | Input: 100~240V AC; Output: 12V/4A DC |
Meenjet Mxplus thermal inkjet printer-TIJ-Specifications.pdf
