PRODUCTS

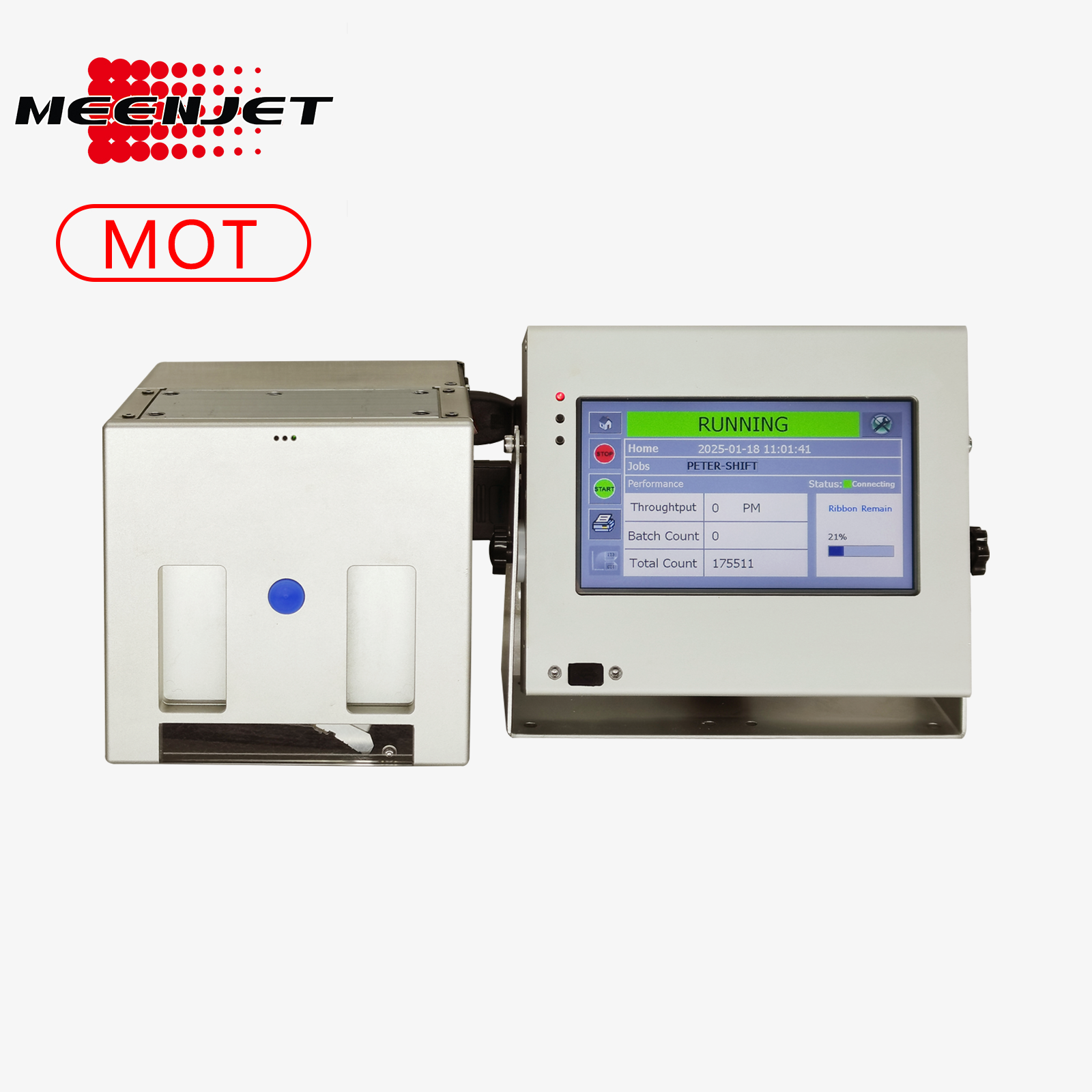

MOT Series Thermal Transfer Overprinter (TTO)
· All-electric design (no air supply required).
· Up to 220 packs/min high-speed output.
· 300 DPI resolution for sharp barcodes and QR codes.
· Supports intermittent and continuous lines.
· 7-inch industrial touchscreen, multi-language support.
· Low operational cost and minimal maintenance.
Material Compatibility
The MOT series is compatible with a wide range of ribbons, ensuring high-quality adhesion on various substrates, including:
Flexible Films: PET, PE, CPP and laminated films.
Specialty Labels: Substrates requiring high-temperature resistance or anti-migration properties.
Packaging Pouches: Stand-up pouches, pillow bags and sachets.
Industries & Applications
Our TTO solutions are used across various industries for reliable performance:
Food & Beverage: Ideal for printing expiry dates and batch numbers on snack bags and frozen food packaging.
Pharmaceuticals: Precise coding on medical pouches and blister packs.
Household & Personal Care: Durable printing for household chemicals and beauty packaging.
| Type | MOT32 | MOT53 |
| Resolution | 300DPI | 300DPI |
| Inter. Print Area | 32 x 55mm | 53 x 55mm |
| Cont. Print Area | 32 x120mm | 53 x120mm |
| Ribbon Length | 600m | 600m |
| Standard Ribbon width | 33mm | 55mm |
| Print Mode | Intermittent and Continuous Integration | |
| Left and right | Optional | |
| Cont. Print Speed | 50~600mm/s | |
| Max prints | 220packs/min | |
| Print contents | Date, post date, time, counter, shift, Bar code, QR code, LOGO, text | |
| Input | Print signal, Encoder signal (NPN, PNP) | |
| Output | Fault relay output | |
| Dimensions (mm) | 164 x 158 x 166 | 164 x 158 x 187 |
| Printer weight | 6.8kg | 7.0kg |
| Power supply | 110/220V AC, 50/60 Hz, 120W | |
| Operation Environmental | Temperature: 5 - 40 ℃ Humidity: 10% - 90%, non-condensing | |
| Operating interface | 7-inch touch screen, multi-languages available | |
| Air Supply | No need air Supply | |
Meenjet Thermal Transfer Overprinter MOT Series Specification.pdf
Printing Performance & Effects
The Meenjet MOT series ensures precise, high-resolution visuals through synchronous printing:
Variable Data: Real-time date, expiry date, time and counters.
Smart Coding: High-density barcodes and QR codes for traceability.
Branding: High-fidelity logos and custom text.
Warranty
· 1-year warranty.
· Lifetime technical support.
· Please contact us for any application questions.
