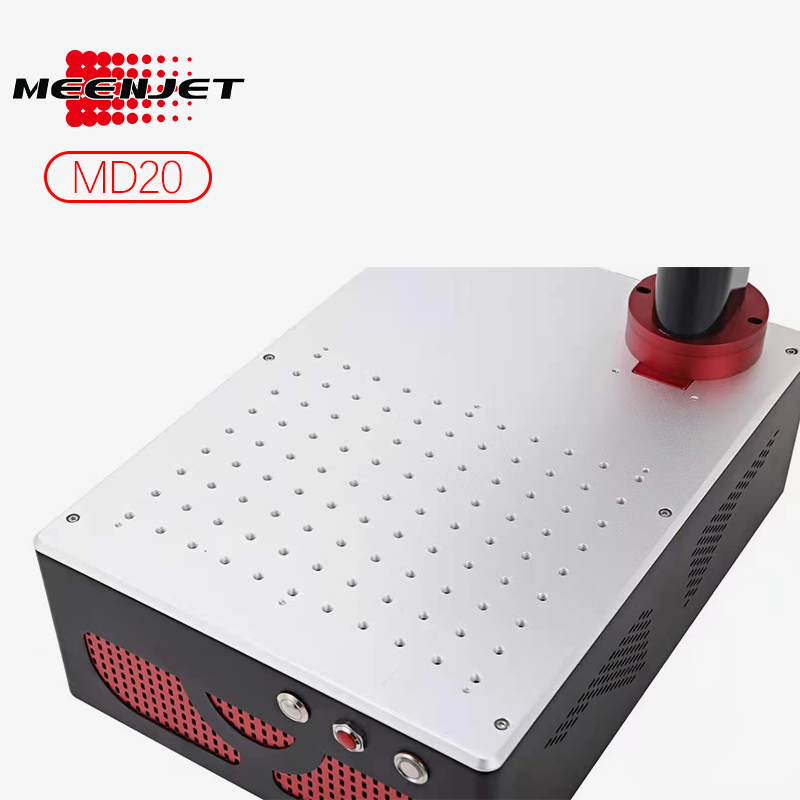

Desktop Static Laser Marking Machine 20W
* Complete Laser Integrated Marking System
* Manage your marking process, from the workshop to the automated production lines.
* Applicable to all metal materials like steel, iron, copper, aluminum, gold, silver, and some non-metallic materials including PC, ABS..
* No maintenance. No consumables. And ultra-high configuration.
* Support EZCad software
| Operating Voltage | AC110V / 60Hz AC220V/50Hz |
| Standard Marking Area | 175mm*175mm |
| Laser Wavelength | 1064nm |
| Laser Type | Pulse or continuous |
| Working Lifetime | ＞100,000 hours |
| Marking Depth | ≤0.3mm (adjust as the material) |
| Marking Line Speed | ≤7000mm/s |
| Minimum Character | 0.2mm (0.008in) (depends on the material) |
| Minimum Linewidth | 0.012mm |
| Repeat Accuracy | ±0.002 |
| Operation System | Win Xp/7/8/10 system |
| Graphic Format Supported | AI, PLT, DXF, BMP, JPG, JPEG |
| Barcode Format Supported | Code39, EAN, PDF417, DM, etc. |
| CNC or Not | No |
| Cooling Mode | Air Cooling |
| Working table | Aluminum Plate |
| Certification | CE, ISO |
| Dimension (L*W*H) | 46*33*57cm |
| Weight | 23kg |
| Temperature | -20 °C ~ 45 °C, relative humidity of 80% |
| Applicable Material | Metal, Acryli, Glass, Leather, MDF, Paper(with color), Plastic, Plywood, Rubber, Wood |
